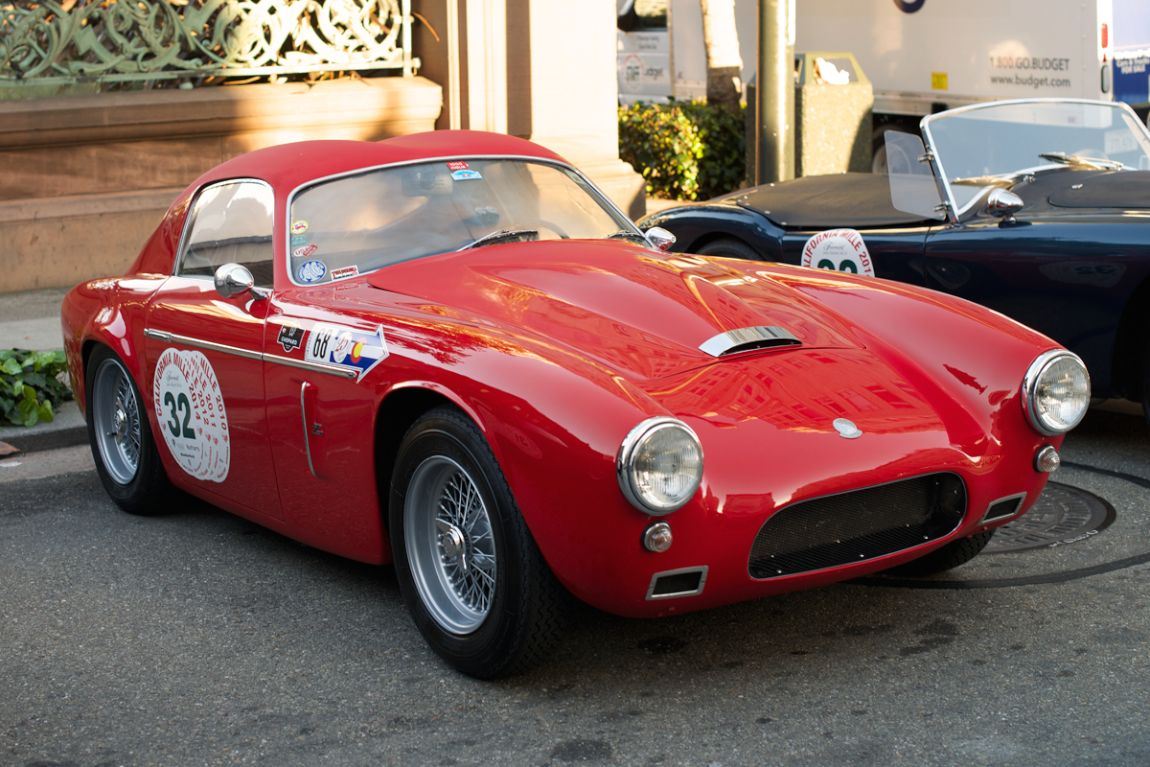

1958 AC Ace-Bristol Zagato

Car Specs

1958 AC Ace-Bristol Zagato

information

Quick Facts

read more »

Specifications

General

Carfolio.com ID: 52085

Dimensions

Track/tread (front): 1270mm
Length: 4000mm
Height: 1262mm
Kerb weight: 896 kgkg
Wheelbase: 2286mm
Track/tread (rear): 1270mm
Width: 1537mm

Body Details

Body type: 2 seater fixed-head coupé

Engine details

Cylinders: Straight 6
Bore × Stroke: 66 × 96 mm, 2.6 × 3.78 inmm
Specific output(Net): 63.4 bhp/litre1.04 bhp/cu in
Specific torque(Net): 84.73 Nm/litre, 1.02 ft·lb/cu3
Engine coolant: Water
Aspiration: Normal
Engine layout: longitudinal
Gearbox: 4
Final drive ratio: 3.91
Engine manufacturer: Bristol
Engine code: 100D2
Capacity: 2 litre1971 cc(120.278 cu in)
Bore/stroke ratio: 0.69
compression ratio: 9:1
Catalytic converter: N
Engine position: front
Top gear ratio: 1
engine type: naturally aspirated petrol

Our Sponsor

Performance

Maximum speed: 195km/h
Weight-to-power ratio: 9.61 kg/kW, 16.06 lb/bhpkg/kW
maximum power output(Net): 127 PS (125 bhp) (93 kW)at 6000 rpm
maximum torque(Net): 167 Nm (123 ft·lb) (17 kgm)at 4500 rpm
Power-to-weight ratio: 141.45 PS/tonne (1000 kg), 104.03 kW/tonne (1000 kg), 139.51 bhp/tonne (1000 kg), 0.06 bhp/lb
Drive wheels: rear wheel drive

Fuel Consump.

Fuel system: 3 So carbs

Chassis & Geomtry

turns lock-to-lock: 2.000
Rear suspension: I.TL.
Front suspension: I.TL.
length:wheelbase ratio: 1.75

Brakes

bmep (brake mean effective pressure): 1064.7 kPa (154.4 psi)kPa
Brakes F/R: Dr/Dr

Other

Valve gear: overhead valve (OHV), 2 valves per cylinder, 12 valves in total
Designer: Zagato
RAC rating: 16.2
Unitary capacity: 328.5 cccc
Number of doors: 2
