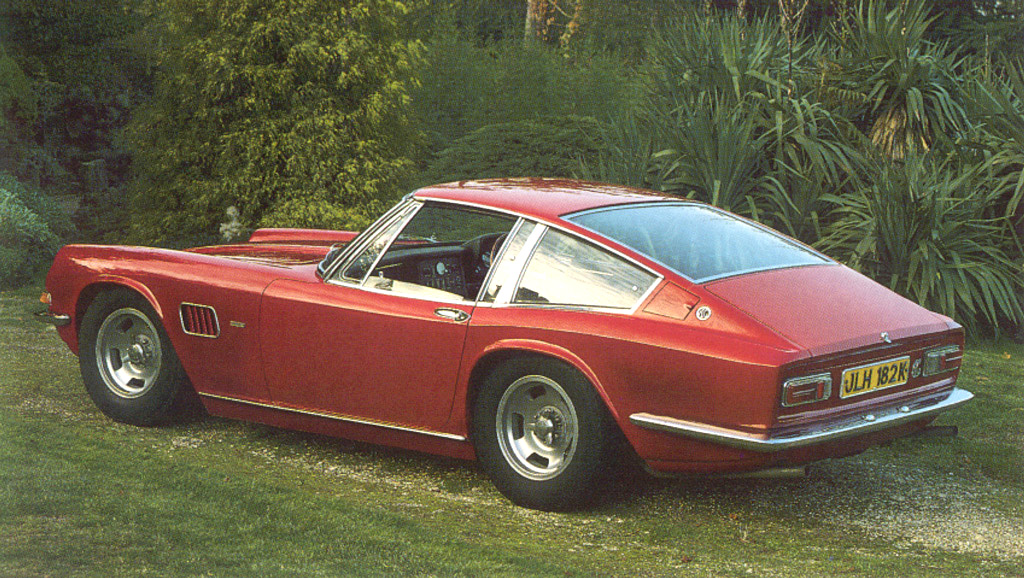

1967 AC 428 Coupé

Car Specs

1967 AC 428 Coupé

information

Quick Facts

read more »

Specifications

General

Carfolio.com ID: 89386

Dimensions

Length: 4509mm
Height: 1257mm
Track/tread (front): 1397mm
Track/tread (rear): 1422mm
Width: 1702mm
Ground clearance: 178mm
Kerb weight: 1483 kgkg
fuel tank capacity: 85.9 litreslitres
Wheelbase: 2438mm

Body Details

Body type: 2+2 seater fixed-head coupé

Engine details

engine type: naturally aspirated petrol
Cylinders: V 8 in 90° vee
Bore × Stroke: 105 × 101.2 mm, 4.13 × 3.98 inmm
Top gear ratio: 1
Specific output(SAE): 49.2 bhp/litre0.81 bhp/cu in
Specific torque(SAE): 89.3 Nm/litre, 1.08 ft·lb/cu3
sump: wet sumped
Engine coolant: Water
Aspiration: Normal
Engine position: front
Engine layout: longitudinal
Engine manufacturer: Ford
Capacity: 7 litre7010 cc(427.776 cu in)
Gearbox: 3
Bore/stroke ratio: 1.04
Final drive ratio: 2.88
Engine construction: cast iron block & head
compression ratio: 10.5:1
crankshaft bearings: 5
Catalytic converter: N

Performance

Drive wheels: rear wheel drive
Maximum RPM: 5250 rpmrpm
Acceleration 0-80km/h (50mph): 4 ss
Acceleration 0-160km/h (100mph): 15.70 ss
Standing kilometre: 26.2 s
Power-to-weight ratio: 235.87 PS/tonne (1000 kg), 173.48 kW/tonne (1000 kg), 232.64 bhp/tonne (1000 kg), 0.1 bhp/lb
maximum power output(SAE): 350 PS (345 bhp) (257 kW)at 4600 rpm
maximum torque(SAE): 626 Nm (462 ft·lb) (63.8 kgm)at 2800 rpm
Acceleration 0-60mph: 5.4 ss
Standing quarter-mile: 13.8 s
Maximum speed: 233km/h
Weight-to-power ratio: 5.76 kg/kW, 9.63 lb/bhpkg/kW

Our Sponsor

Fuel Consump.

Fuel system: 1 Ford carb

Chassis & Geomtry

Turning circle: 13.40 m
length:wheelbase ratio: 1.85
Rear suspension: I.CS.DW.
Weight distribution: 45.4 % front
turns lock-to-lock: 3.500
Front suspension: I.CS.DW.

Brakes

Front brake diameter: 298 mmmm
Braked area: 3742 cm2
Brakes F/R: Di/Di-S
Rear brake diameter: 267 mmmm
bmep (brake mean effective pressure): 1122.2 kPa (162.8 psi)kPa

Wheels & Tyres

Tyres rear: 205 x 15
Tyres front: 205 x 15

Other

Valve gear: overhead valve (OHV), 2 valves per cylinder, 16 valves in total
Designer: Frua
RAC rating: 54.7
Unitary capacity: 876.25 cccc
Number of doors: 2
