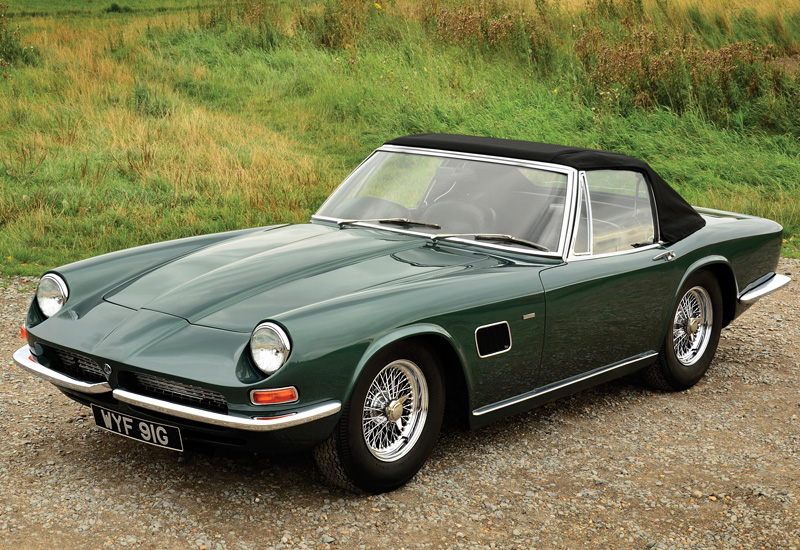

1967 AC 428 Convertible

汽车规格

1967 AC 428 Convertible

信息

Quick Facts

read more »

规格

Dimensions

Track/tread (front): 1397mm
Length: 4509mm
Height: 1257mm
Fuel Tank Capacity: 85.9litres
Wheelbase: 2438mm
Track/tread (rear): 1422mm
Width: 1702mm
Ground clearance: 178mm
Kerb weight: 1483kg

Body Details

Body Type: 2 seater convertible/cabriolet

Engine Details

Catalytic converter: N
Engine Position: front
Top Gear Ratio: 1
Engine Manufacturer: Ford
Capacity: 7 litre (7010 cc)
Bore/stroke ratio: 1.04
Engine Construction: cast iron block & head
Compression Ratio: 10.5:1
Crankshaft Bearings: 5
Aspiration: Normal
Engine Layout: longitudinal
Gearbox: 3
Engine Type: naturally aspirated petrol
Final Drive Ratio: 2.88
Cylinders: V 8 in 90° vee
Bore × Stroke: 105 × 101.2mm
Specific output(SAE): 49.2 bhp/litre0.81 bhp/cu in
Specific torque(SAE): 89.3 Nm/litre, 1.08 ft·lb/cu3
Sump: wet sumped
Engine Coolant: Water

Performance

Power-to-weight ratio: 235.87 PS/tonne (1000 kg), 173.48 kW/tonne (1000 kg), 232.64 bhp/tonne (1000 kg), 0.1 bhp/lb
Drive Wheels: rear wheel drive
maximum power output(SAE): 350 PS (345 bhp) (257 kW)at 4600 rpm
maximum torque(SAE): 626 Nm (462 ft·lb) (63.8 kgm)at 2800 rpm
Maximum Speed: 233km/h
Weight-to-power ratio: 5.76 kg/kW, 9.63 lb/bhpkg/kW
Maximum RPM: 5250 rpmrpm

Fuel Consump.

Fuel system: 1 Ford carb

Chassis & Geomtry

Turning Circle: 13.40 m
Rear suspension: I.CS.DW.
Length:Wheelbase Ratio: 1.85
Turns Lock-to-Lock: 3.500
Front Suspension: I.CS.DW.

Brakes

Front Brake Diameter: 298 mmmm
Braked area: 3742 cm2
bmep (brake mean effective pressure): 1122.2 kPa (162.8 psi)kPa
Brakes F/R: Di/Di-S
Rear brake diameter: 267 mmmm

Wheels & Tyres

Tyres Rear: 205 x 15
Tyres Front: 205 x 15

Other

Unitary Capacity: 876.25cc
Designer: Frua
RAC rating: 54.7
Number of doors: 2
Valve Gear: overhead valve (OHV), 2 valves per cylinder, 16 valves in total
