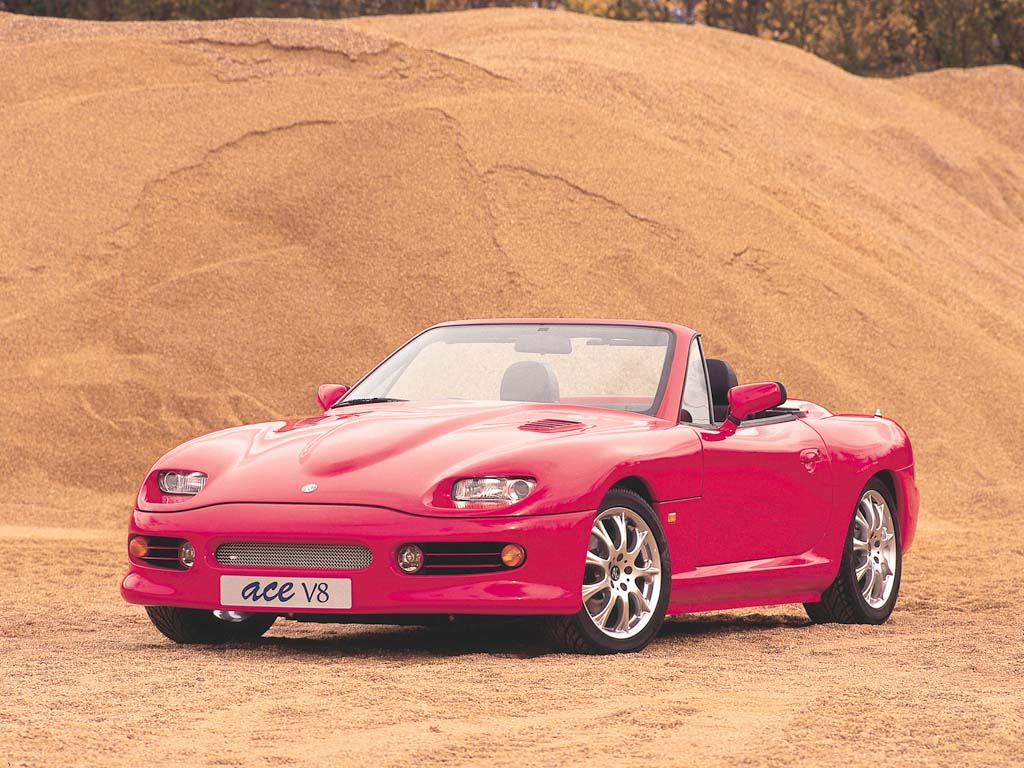

1998 AC Ace Supercharged

Car Specs

1998 AC Ace Supercharged

Information

Quick Facts

read more »

Specifications

Dimensions

Wheelbase: 2472mm
Track/tread (rear): 1570mm
Width: 1870mm
Kerb weight: 1510kg
Fuel Tank Capacity: 90litres
Track/tread (front): 1590mm
Length: 4420mm
Height: 1300mm

Body Details

Body Type: 2 seater convertible/cabriolet

Engine Details

Engine Type: supercharged petrol
Cylinders: V 8
Bore × Stroke: 101.6 × 76.2mm
Specific output(DIN): 64.8 bhp/litre1.06 bhp/cu in
Specific torque(DIN): 105.63 Nm/litre, 1.28 ft·lb/cu3
Crankshaft Bearings: 5
Catalytic converter: Y
Engine Layout: longitudinal
Top Gear Ratio: 0.68
Engine Manufacturer: Ford
Capacity: 4.9 litre (4942 cc)
Bore/stroke ratio: 1.33
Compression Ratio: 9:1
Engine Coolant: Water
Aspiration: S/Charged
Engine Position: front
Gearbox: 5
Final Drive Ratio: 3.23

Performance

Maximum Speed: 249km/h
Weight-to-power ratio: 6.33 kg/kW, 10.57 lb/bhpkg/kW
maximum power output(DIN): 324 PS (320 bhp) (239 kW)at 5700 rpm
maximum torque(DIN): 522 Nm (385 ft·lb) (53.2 kgm)at 3500 rpm
Acceleration 0-60mph: 5.5s
Power-to-weight ratio: 214.87 PS/tonne (1000 kg), 158.03 kW/tonne (1000 kg), 211.92 bhp/tonne (1000 kg), 0.09 bhp/lb
Drive Wheels: rear wheel drive

Our Sponsor

Fuel Consump.

Fuel system: EFi

Chassis & Geomtry

Length:Wheelbase Ratio: 1.79
Weight Distribution: 49 % front
Turns Lock-to-Lock: 2.750
Front Suspension: I.W.CS.
Turning Circle: 10.50 m
Rear suspension: I.W.CS.

Brakes

Brakes F/R: VeDi/VeDi-S-ABS
bmep (brake mean effective pressure): 1327.3 kPa (192.5 psi)kPa

Other

Valve Gear: overhead valve (OHV), 2 valves per cylinder, 16 valves in total
Unitary Capacity: 617.75cc
RAC rating: 51.2
Number of doors: 2
