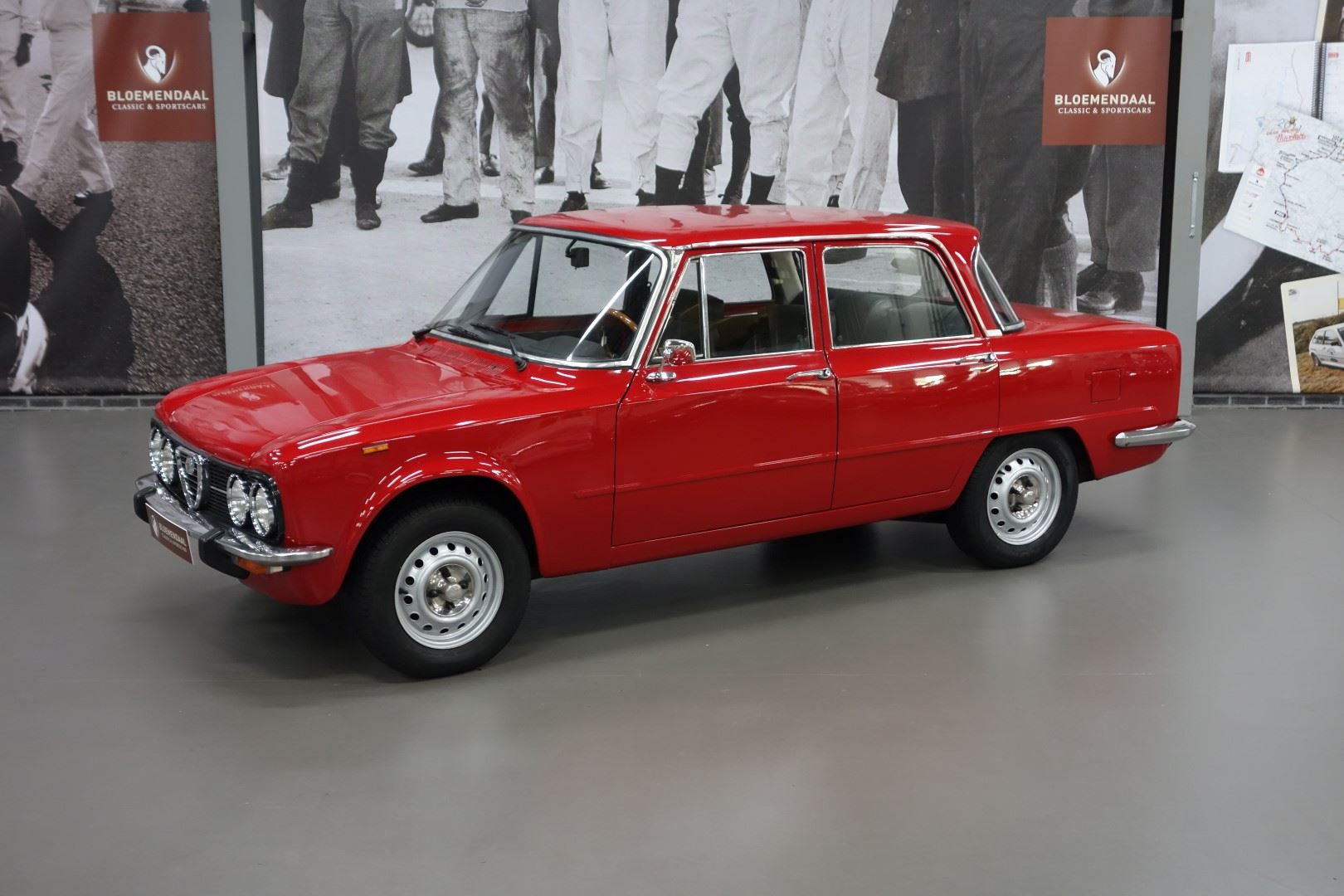

1972 Alfa Romeo Giulia 1300 Super

Car Specs

1972 Alfa Romeo Giulia 1300 Super

Information

Alfa Romeo

Quick Facts

Production Total: 85200

Chassis Code: 115

Build Start: 1972

Available in other variants

read more »

Specifications

General

Build Start: 1972
Model Variant: 115
Chassis Code: 115

Dimensions

Wheelbase: 2510mm
Track/tread (rear): 1270mm
Width: 1560mm
Ground clearance: 120mm
Kerb weight: 1010kg
Track/tread (front): 1320mm
Length: 4160mm
Height: 1430mm
Fuel Tank Capacity: 46litres

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Engine Position: front
Engine Type: naturally aspirated petrol
Top Gear Ratio: 0.86
Engine Code: 00530
Capacity: 1.3 litre (1290cc)
Bore/stroke ratio: 0.99
Engine Construction: light alloy block & head
Compression Ratio: 9:1
Crankshaft Bearings: 5
Catalytic converter: N
Engine Layout: longitudinal
Gearbox: 5 speed manual
Engine Manufacturer: Alfa Romeo
Final Drive Ratio: 4.77
Cylinders: Straight 4
Bore × Stroke: 74 × 75mm
Specific output(DIN): 68.2 bhp/litre1.12 bhp/cu in
Specific torque(DIN): 91.47 Nm/litre, 1.11 ft·lb/cu3
Sump: wet sumped
Engine Coolant: Water
Aspiration: Normal

Performance

Power-to-weight ratio: 88.34 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive
maximum power output(DIN): 89 PS (88 bhp) (66 kW)at 6000 rpm
maximum torque(DIN): 118 Nm (87 ft·lb) (12 kgm)at 3200 rpm
Maximum Speed: 165km/h
Weight-to-power ratio: 15.39kg/kW
Maximum RPM: 6000rpm

Our Sponsor

Fuel Consump.

Fuel system: 2 Weber 40 DCOE 28 carburettors

Chassis & Geomtry

Turning Circle: 10.90 m
Rear suspension: LA.TA.CS.
Turns Lock-to-Lock: 3.700
Front Suspension: I.W.CS.ARB.
Length:Wheelbase Ratio: 1.66

Brakes

Front Brake Diameter: 267mm
Braked area: 2268 cm2
bmep (brake mean effective pressure): 1149.5kPa
Brakes F/R: Di/Di-S
Rear brake diameter: 267mm

Wheels & Tyres

Tyres Rear: 155 x 15
Tyres Front: 155 x 15

Other

Production Total: 85200
RAC rating: 13.6
Unitary Capacity: 322.5cc
Number of doors: 4
Model code: 115.09
Valve Gear: double overhead camshaft (DOHC), 2 valves per cylinder, 8 valves in total
