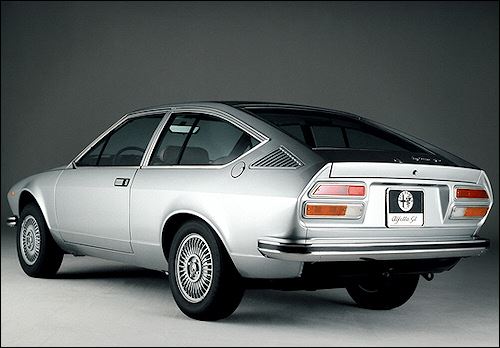

1974 Alfa Romeo Alfetta Coupé 1.6

Car Specs

1974 Alfa Romeo Alfetta Coupé 1.6

Information

Alfa Romeo

Quick Facts

Build Start: 1974

Available in other variants

read more »

Specifications

General

Build Start: 1974
Model Variant: Alfetta

Dimensions

Track/tread (front): 1360mm
Length: 4190mm
Height: 1334mm
Fuel Tank Capacity: 49litres
Wheelbase: 2400mm
Track/tread (rear): 1360mm
Width: 1660mm
Ground clearance: 120mm
Kerb weight: 998kg

Body Details

Body Type: 2+2 seater fixed-head coupé

Engine Details

Crankshaft Bearings: 5
Catalytic converter: N
Engine Layout: longitudinal
Gearbox: 5 speed manual
Final Drive Ratio: 4.30
Engine Type: naturally aspirated petrol
Cylinders: Straight 4
Bore × Stroke: 78 × 82mm
Specific output(DIN): 69.4 bhp/litre1.14 bhp/cu in
Specific torque(DIN): 89.81 Nm/litre, 1.09 ft·lb/cu3
Compression Ratio: 9:1
Engine Coolant: Water
Aspiration: Normal
Engine Position: front
Top Gear Ratio: 0.83
Engine Manufacturer: Alfa Romeo
Capacity: 1.6 litre (1570cc)
Bore/stroke ratio: 0.95

Performance

Maximum Speed: 164km/h
Weight-to-power ratio: 12.28kg/kW
Acceleration 0-60mph: 10.4s
Power-to-weight ratio: 110.74 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive
maximum power output(DIN): 111 PS (109 bhp) (81 kW)at 5600 rpm
maximum torque(DIN): 141 Nm (104 ft·lb) (14.4 kgm)at 4300 rpm

Our Sponsor

Fuel Consump.

Fuel system: 2 We carbs

Chassis & Geomtry

Front Suspension: I.W.TB.ARB.
Length:Wheelbase Ratio: 1.75
Turns Lock-to-Lock: 3.500
Rear suspension: dD.TB.WL.CS.ARB.

Brakes

Brakes F/R: Di/Di-S
bmep (brake mean effective pressure): 1128.6kPa
Braked area: 1955 cm2

Aerodynamics

Drag coefficient: 0.42

Other

Unitary Capacity: 392.5cc
Steering: rack & pinion
Designer: Giugiaro
Valve Gear: double overhead camshaft (DOHC), 2 valves per cylinder, 8 valves in total
Number of doors: 3
RAC rating: 15.1
