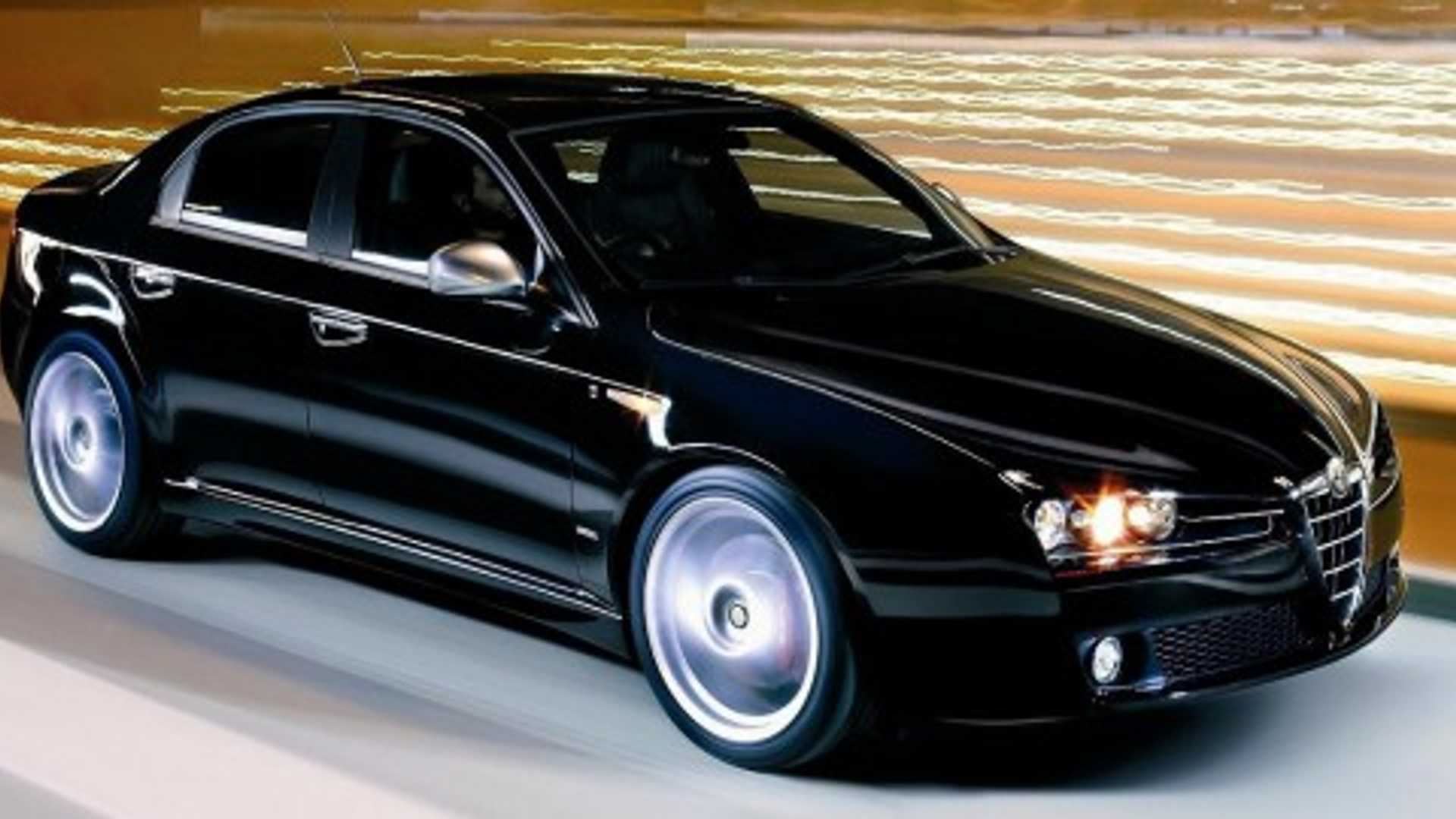

2005 Alfa Romeo 159 3.2 V6 Q4

Car Specs

2005 Alfa Romeo 159 3.2 V6 Q4

Information

Alfa Romeo

Quick Facts

Build Start: 2005

Available in other variants

read more »

Specifications

General

Build Start: 2005
Model Variant: 159

Dimensions

Track/tread (front): 1578mm
Length: 4660mm
Height: 1417mm
Kerb weight: 1740kg
Wheelbase: 2700mm
Track/tread (rear): 1555mm
Width: 1828mm
Fuel Tank Capacity: 70litres

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Gearbox: 6 speed manual
Engine Code: 939 A 000
Final Drive Ratio: 3.90
Capacity: 3.2 litre (3195cc)
Bore/stroke ratio: 1.04
Sump: wet sumped
Catalytic converter: Y
Engine Layout: transverse
Engine Type: naturally aspirated petrol
Engine Manufacturer: Alfa Romeo
Top Gear Ratio: 0.75
Cylinders: V 6
Bore × Stroke: 89 × 85.6mm
Specific output: 80.1bhp/litre
Specific torque: 100.78Nm/litre
Compression Ratio: 11.25:1
Engine Coolant: Water
Aspiration: Normal
Engine Position: front

Performance

Maximum Power Output: 260 @ 6200 rpm
Maximum Torque: 322 Nmlb/ft
Maximum RPM: 7200rpm
Standing kilometre: 27.5 s
Power-to-weight ratio: 149.17 PS/tonne (1000 kg)
Acceleration 0-100km/h: 7s
Maximum Speed: 240km/h
Weight-to-power ratio: 9.11kg/kW
Drive Wheels: all wheel drive

Our Sponsor

Fuel Consump.

Fuel system: MED 7.6.2 direct injection
Fuel Consumption: 15.9/8.5/11.5 l/100km urban/extra-urban/combined
VED band (UK): M
Carbon dioxide emissions: 270.0 g/km NEDC

Chassis & Geomtry

Rear suspension: I.DW.
Front Suspension: I.MultiLi.
Length:Wheelbase Ratio: 1.73

Brakes

Front Brake Diameter: 330mm
bmep (brake mean effective pressure): 1266.5kPa
Brakes F/R: VeDi/VeDi-S-ABS
Rear brake diameter: 292mm

Wheels & Tyres

Tyres Rear: 225/50 R 17
Tyres Front: 225/50 R 17

Other

Unitary Capacity: 532.5cc
Designer: Giugiaro/Alfa Romeo
Steering: power assisted rack & pinion
RAC rating: 29.5
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 24 valves in total
Number of doors: 4
