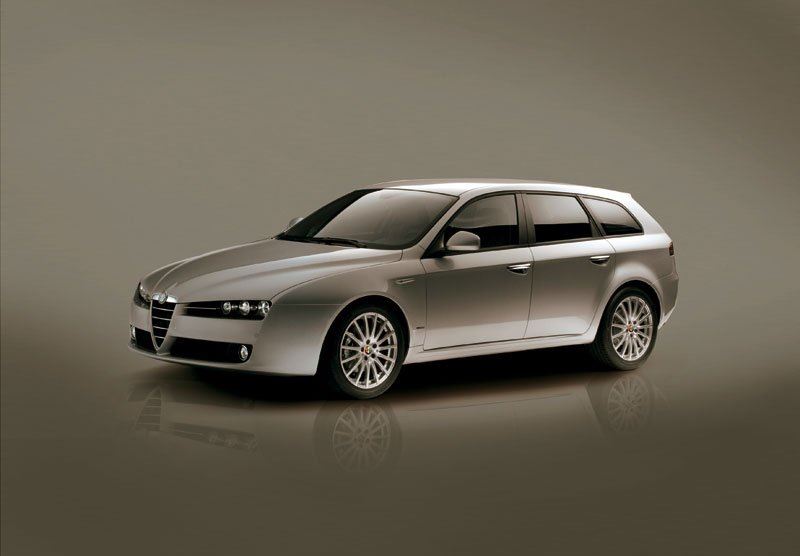

2006 Alfa Romeo 159 Sportwagon 3.2 V6 Q4

Car Specs

2006 Alfa Romeo 159 Sportwagon 3.2 V6 Q4

Information

Alfa Romeo

Quick Facts

Build Start: 2006

Available in other variants

read more »

Specifications

General

Build Start: 2006
Model Variant: 159

Dimensions

Length: 4660mm
Height: 1425mm
Kerb weight: 1730kg
Wheelbase: 2700mm
Width: 1828mm
Fuel Tank Capacity: 70litres

Body Details

Body Type: 4/5 seater estate/station wagon

Engine Details

Catalytic converter: Y
Engine Layout: transverse
Torque Split: 57/43
Engine Type: naturally aspirated petrol
Top Gear Ratio: 0.75
Cylinders: V 6 in 60° vee
Bore × Stroke: 89 × 85.6mm
Compression Ratio: 11.25:1
Engine Coolant: Water
Aspiration: Normal
Engine Position: front
Gearbox: 6 speed manual
Engine Manufacturer: Alfa Romeo
Final Drive Ratio: 3.90
Capacity: 3.2 litre (3195cc)
Bore/stroke ratio: 1.04
Sump: wet sumped

Performance

Standing kilometre: 27.9 s
Power-to-weight ratio: 150.03 PS/tonne (1000 kg)
Acceleration 0-100km/h: 7.2s
Maximum Speed: 237km/h
Weight-to-power ratio: 9.06kg/kW
Drive Wheels: all wheel drive

Our Sponsor

Fuel Consump.

Fuel Consumption: 17.0/8.4/11.6 l/100km urban/extra-urban/combined
VED band (UK): M
Carbon dioxide emissions: 275.0 g/km NEDC
Fuel system: MED 7.6.2 direct injection

Chassis & Geomtry

Front Suspension: I.DW.
Rear suspension: I.MultiLi.
Length:Wheelbase Ratio: 1.73

Brakes

Brakes F/R: VeDi/VeDi-S-ABS
Rear brake diameter: 292mm
bmep (brake mean effective pressure): 1266.5kPa
Front Brake Diameter: 330mm

Wheels & Tyres

Tyres Front: 225/50 R 17
Tyres Rear: 225/50 R 17

Other

Unitary Capacity: 532.5cc
Designer: Giugiaro/Alfa Romeo
RAC rating: 29.5
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 24 valves in total
Specific output(EC): 80.1 bhp/litre1.31 bhp/cu in
Specific torque(EC): 100.78 Nm/litre, 1.22 ft·lb/cu3
Number of doors: 5
Steering: power assisted rack & pinion
maximum power output(EC): 260 PS (256 bhp) (191 kW)at 6200 rpm
maximum torque(EC): 322 Nm (237 ft·lb) (32.8 kgm)at 4500 rpm
