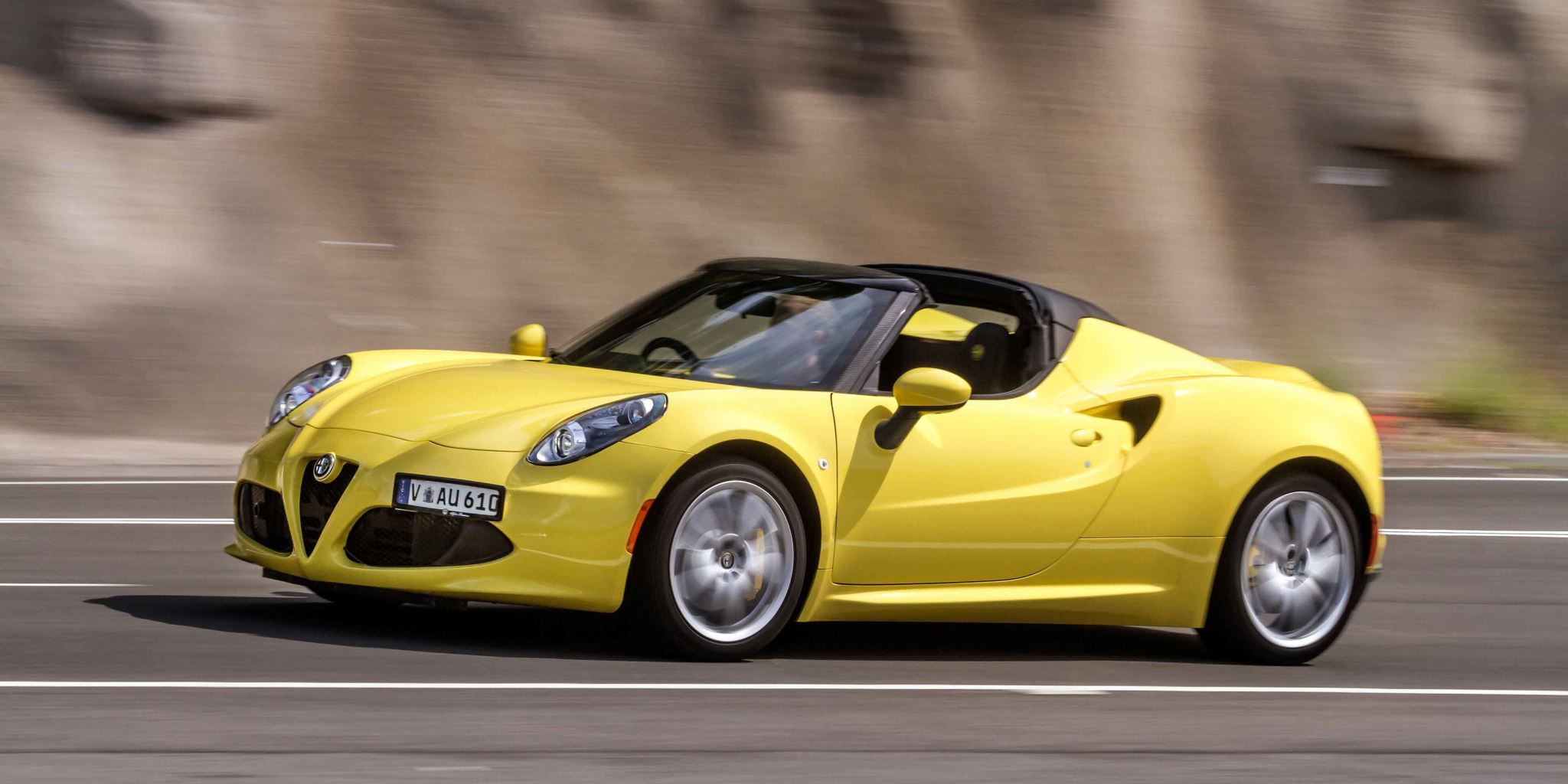

2018 Alfa Romeo 4C Spider

Car Specs

2018 Alfa Romeo 4C Spider

Information

Alfa Romeo

Quick Facts

Build Start: 2018

Available in other variants

read more »

Specifications

General

Build Start: 2018
Model Variant: 4C

Dimensions

Wheelbase: 2380mm
Track/tread (rear): 1603mm
Width: 1867mm
Ground clearance: 114mm
Kerb weight: 1128kg
Fuel Tank Capacity: 40litres
Track/tread (front): 1638mm
Length: 3990mm
Height: 1186mm

Body Details

Body Type: 2 seater convertible/cabriolet

Engine Details

Engine Layout: transverse
Top Gear Ratio: 0.62
Engine Type: turbocharged petrol
Cylinders: Straight 4
Bore × Stroke: 83 × 80.5mm
Specific output: 136.1bhp/litre
Specific torque: 200.92Nm/litre
Compression Ratio: 9.25:1
Crankshaft Bearings: 5
Intercooler: Y
Engine Position: mid
Gearbox: 6 speed manual
Final Drive Ratio: 4.12
Engine Manufacturer: Fiat
Capacity: 1.7 litre (1742 cc)
Bore/stroke ratio: 1.03
Sump: wet sumped
Engine Coolant: Water
Aspiration: Turbo
Catalytic converter: Y

Performance

Power-to-weight ratio: 213.03 PS/tonne (1000 kg)
Weight-to-power ratio: 6.38kg/kW
Drive Wheels: rear wheel drive
Maximum Power Output: 240 @ 6000 rpm
Maximum Torque: 350 Nmlb/ft
Maximum RPM: 6500rpm

Our Sponsor

Fuel Consump.

Fuel Consumption: 24/34/28 US MPG EPA city/highway/combined
Fuel system: direct petrol injection

Chassis & Geomtry

Front Suspension: I.DW.CS.ARB.
Turns Lock-to-Lock: 2.700
Rear suspension: I.MS.
Length:Wheelbase Ratio: 1.68
Weight Distribution: 41% front

Brakes

Brakes F/R: VeDi/VeDi-S-ABS
Rear brake diameter: 292mm
bmep (brake mean effective pressure): 2524.8kPa
Front Brake Diameter: 305mm

Aerodynamics

Drag coefficient: 0.341

Other

Steering: power assisted rack & pinion
RAC rating: 17.1
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 16 valves in total
Unitary Capacity: 435.5cc
Number of doors: 2
