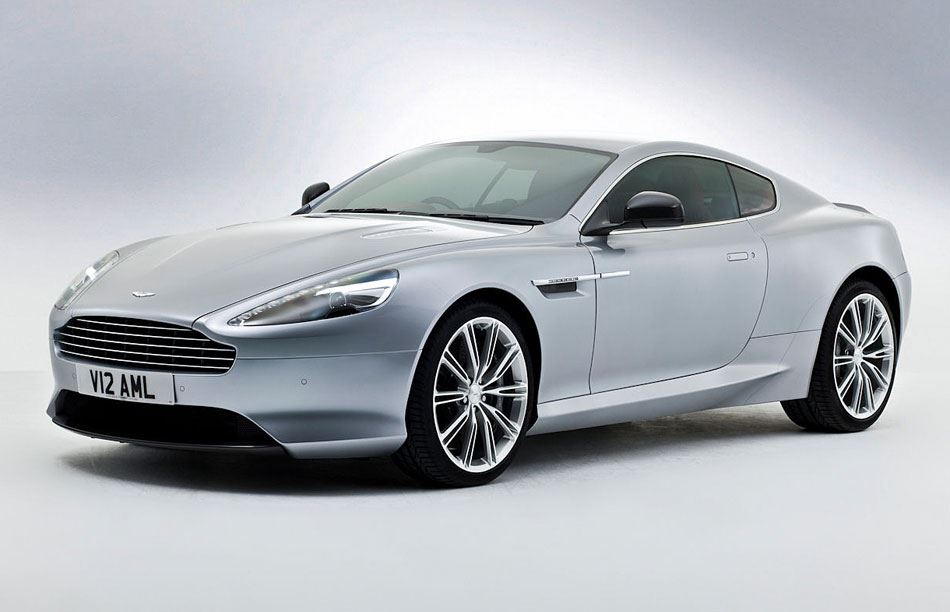

2003 Aston Martin DB9 Automatic

Car Specs

2003 Aston Martin DB9 Automatic

Information

Aston Martin

Quick Facts

Build Start: 2003

Available in other variants

read more »

Specifications

General

Build Start: 2003
Model Variant: DB9

Dimensions

Track/tread (front): 1570mm
Length: 4710mm
Height: 1270mm
Kerb weight: 1760kg
Wheelbase: 2740mm
Track/tread (rear): 1560mm
Width: 1875mm
Fuel Tank Capacity: 80litres

Body Details

Body Type: 2+2 seater fixed-head coupé

Engine Details

Compression Ratio: 10.3:1
Catalytic converter: Y
Engine Position: front
Engine Manufacturer: Aston Martin
Capacity: 5.9 litre (5935 cc)
Bore/stroke ratio: 1.12
Gearbox: 6 speed automatic
Final Drive Ratio: 3.15
Engine Construction: alloy block & head
Sump: wet sumped
Engine Coolant: Water
Aspiration: Normal
Engine Layout: longitudinal
Engine Type: naturally aspirated petrol
Cylinders: V 12 in 60° vee
Bore × Stroke: 89 × 79.5mm
Top Gear Ratio: 0.69
Specific output: 75.8bhp/litre
Specific torque: 96.04Nm/litre

Performance

Acceleration 0-60mph: 5.4s
Standing quarter-mile: 13.7 s, @ 111 mph
Maximum Speed: 299km/h
Weight-to-power ratio: 5.24kg/kW
Drive Wheels: rear wheel drive
Maximum Power Output: 456 @ 6000 rpm
Maximum Torque: 570 Nmlb/ft
Acceleration 0-80km/h (50mph): 4.4s
Acceleration 0-160km/h (100mph): 11.3s
Standing kilometre: 24 s, @ 235 km/h
Power-to-weight ratio: 259.24 PS/tonne (1000 kg)

Our Sponsor

Fuel Consump.

Carbon dioxide emissions: 394.0 g/km NEDC
Fuel system: EFI
Fuel Consumption: 24.9/11.7/16.5 l/100km urban/extra-urban/combined
VED band (UK): M

Chassis & Geomtry

Turning Circle: 11.50 m
Rear suspension: I.DW.CS.ARB.
Turns Lock-to-Lock: 3.000
Length:Wheelbase Ratio: 1.72
Front Suspension: I.DW.CS.ARB.

Brakes

bmep (brake mean effective pressure): 1206.9kPa
Front Brake Diameter: 355mm
Brakes F/R: VeDi/VeDi-S-ABS
Rear brake diameter: 330mm

Wheels & Tyres

Wheel Size Rear: 19x9½J
Tyres Rear: Bridgestone REO 50 275/35 ZR 19
Wheel Size Front: 19x8½J
Tyres Front: Bridgestone REO 50 235/40 ZR 19

Aerodynamics

Drag coefficient: 0.35

Other

Unitary Capacity: 494.58cc
Designer: Henrik Fisker
Number of doors: 2
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 48 valves in total
RAC rating: 58.9
