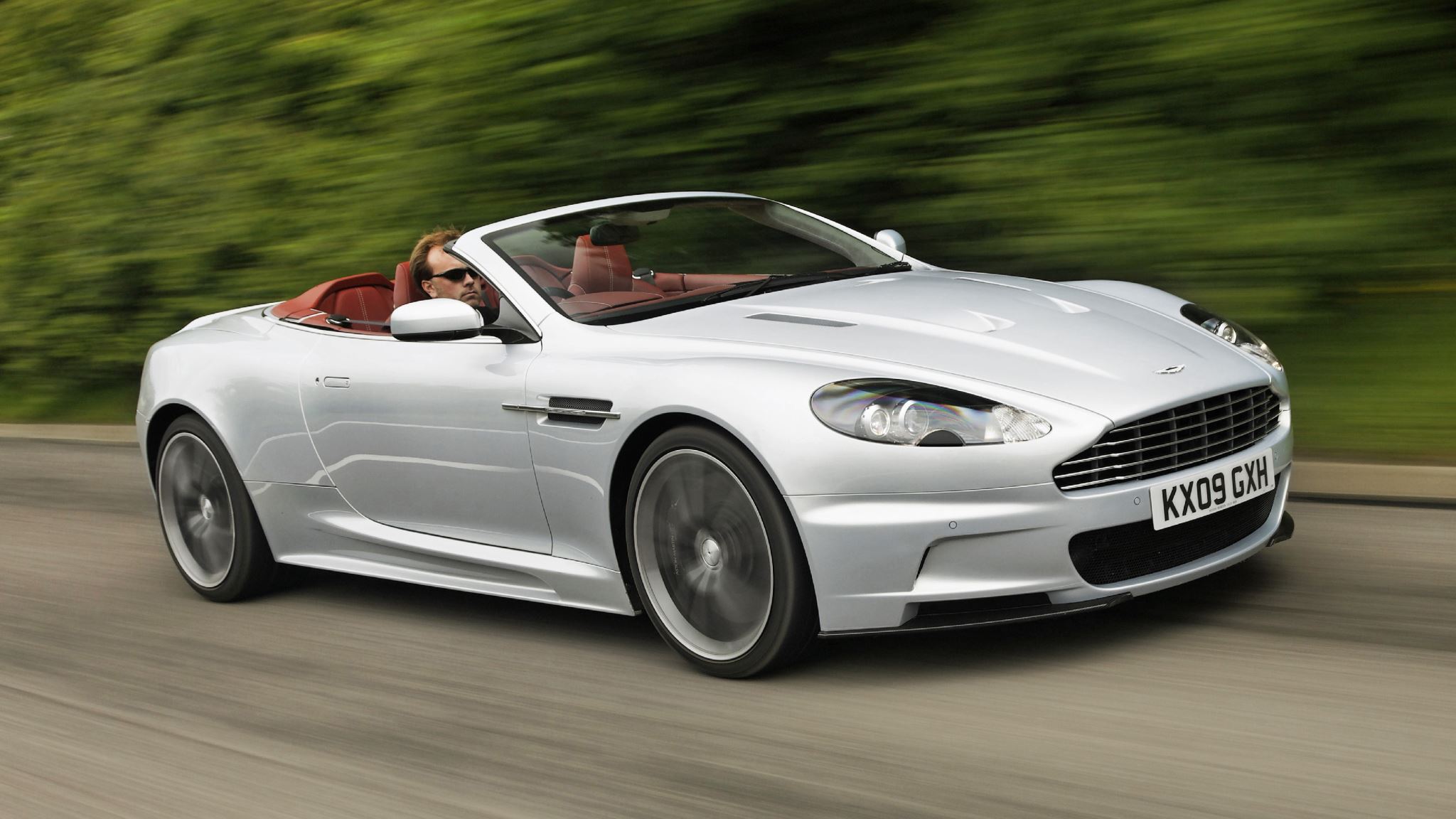

2009 Aston Martin DBS Volante

Car Specs

2009 Aston Martin DBS Volante

Information

Aston Martin

Quick Facts

Build Start: 2009

Available in other variants

read more »

Specifications

General

Build Start: 2009
Model Variant: DBS

Dimensions

Length: 4721mm
Height: 1280mm
Kerb weight: 1810kg
Wheelbase: 2740mm
Width: 1905mm
Fuel Tank Capacity: 78litres

Body Details

Body Type: 2+2 seater convertible/cabriolet

Engine Details

Catalytic converter: Y
Engine Layout: longitudinal
Final Drive Ratio: 3.71
Engine Type: naturally aspirated petrol
Cylinders: V 12 in 60° vee
Bore × Stroke: 89 × 79.5mm
Specific output: 85.9bhp/litre
Specific torque: 96.04Nm/litre
Compression Ratio: 10.9:1
Engine Coolant: Water
Aspiration: Normal
Engine Position: front
Gearbox: 6 speed manual
Engine Manufacturer: Aston Martin
Capacity: 5.9 litre (5935 cc)
Bore/stroke ratio: 1.12
Engine Construction: aluminium alloy block & head

Performance

Maximum Speed: 307km/h
Weight-to-power ratio: 4.76kg/kW
Acceleration 0-100km/h: 4.3s
Power-to-weight ratio: 285.68 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive
Maximum Power Output: 517 @ 6500 rpm
Maximum Torque: 570 Nmlb/ft

Our Sponsor

Fuel Consump.

Fuel system: EFI

Chassis & Geomtry

Front Suspension: I.DW.CS.ARB.
Rear suspension: I.DW.ARB.
Length:Wheelbase Ratio: 1.72

Brakes

bmep (brake mean effective pressure): 1206.9kPa
Brakes F/R: VeDi/VeDi-S-ABS
Rear brake diameter: 360mm
Front Brake Diameter: 398mm

Wheels & Tyres

Wheel Size Front: 20x8½
Tyres Front: Pirelli P Zero 245/35 x 20
Wheel Size Rear: 20x11
Tyres Rear: Pirelli P Zero 295/30 x 20

Other

Unitary Capacity: 494.58cc
Designer: Marek Reichman
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 48 valves in total
Number of doors: 2
RAC rating: 58.9
