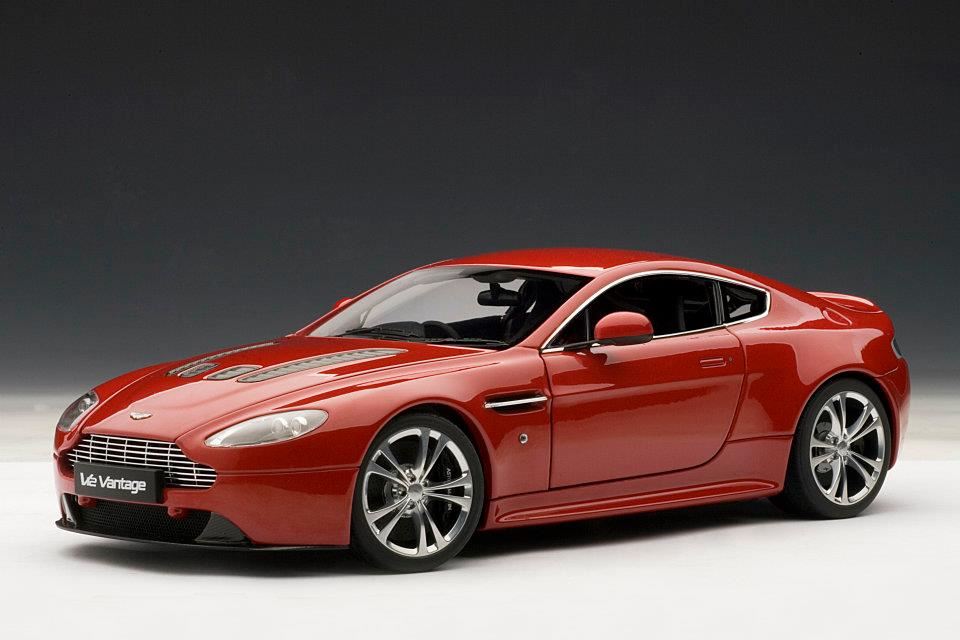

2009 Aston Martin V12 Vantage

Car Specs

2009 Aston Martin V12 Vantage

Information

Aston Martin

Quick Facts

Build Start: 2009

Available in other variants

read more »

Specifications

General

Build Start: 2009
Model Variant: V12

Dimensions

Wheelbase: 2600mm
Width: 1865mm
Length: 4380mm
Height: 1241mm
Kerb weight: 1680kg
Fuel Tank Capacity: 80litres

Body Details

Body Type: 2 seater fixed-head coupé

Engine Details

Engine Position: front
Engine Type: naturally aspirated petrol
Cylinders: V 12 in 60° vee
Final Drive Ratio: 3.71
Bore × Stroke: 89 × 79.5mm
Specific output: 85.9bhp/litre
Specific torque: 96.04Nm/litre
Compression Ratio: 10.9:1
Catalytic converter: Y
Engine Layout: longitudinal
Engine Manufacturer: Aston Martin
Gearbox: 6 speed manual
Capacity: 5.9 litre (5935 cc)
Bore/stroke ratio: 1.12
Engine Construction: aluminium alloy block & head
Engine Coolant: Water
Aspiration: Normal

Performance

Drive Wheels: rear wheel drive
Acceleration 0-100km/h: 4.2s
Power-to-weight ratio: 307.79 PS/tonne (1000 kg)
Maximum Power Output: 517 @ 6500 rpm
Maximum Torque: 570 Nmlb/ft
Acceleration 0-60mph: 4.1s
Maximum Speed: 305km/h
Weight-to-power ratio: 4.42kg/kW

Our Sponsor

Fuel Consump.

Fuel Consumption: 24.3/11.7/16.4 l/100km urban/extra-urban/combined
VED band (UK): M
CO2 Effizienz (DE): G
Fuel system: EFI
Carbon dioxide emissions: 388.0 g/km NEDC

Chassis & Geomtry

Front Suspension: I.DW.CS.ARB.
Length:Wheelbase Ratio: 1.68
Weight Distribution: 51% front
Rear suspension: I.DW.CS.ARB.

Brakes

Brakes F/R: VeDi/VeDi-S-ABS
Rear brake diameter: 360mm
bmep (brake mean effective pressure): 1206.9kPa
Front Brake Diameter: 398mm

Wheels & Tyres

Wheel Size Front: 19x9
Tyres Front: Pirelli P Zero Corsa 255/35 ZR 19
Wheel Size Rear: 19x11
Tyres Rear: Pirelli P Zero Corsa 295/30 ZR 19

Other

Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 48 valves in total
Unitary Capacity: 494.58cc
Number of doors: 2
Steering: power assisted rack & pinion
RAC rating: 58.9
