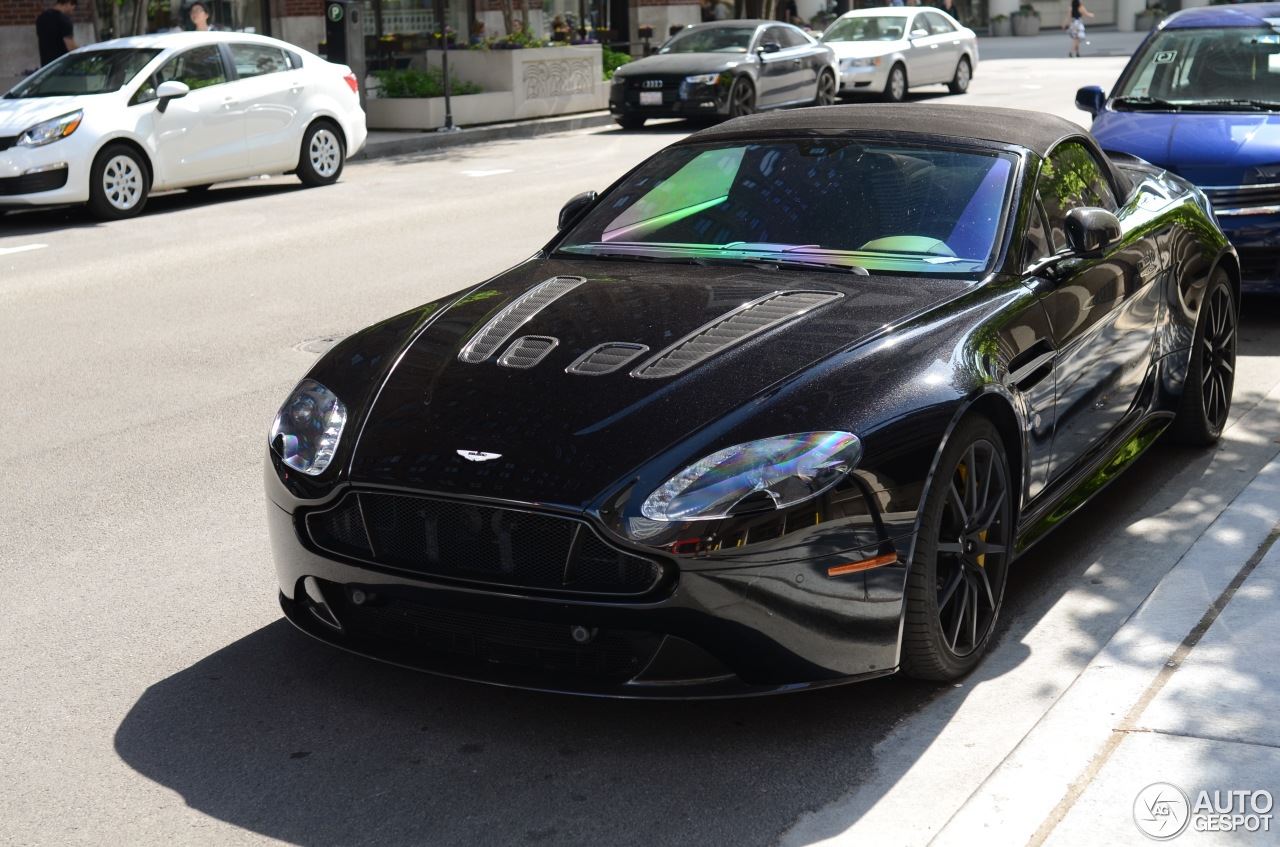

2016 Aston Martin V12 Vantage S Specs

Aston Martin

Build Start: 2016

Available in other variants

Specifications

General

Build Start:2016

ModelVariant:V12

Dimensions

Track/tread (front):1570 mm

Length:4385 mmmm

Height:1250 mmmm

Kerb weight:1665 kg

Wheelbase:2600 mmmm

Track/tread (rear):1575 mm

Width:1865 mmmm

fuel tank capacity:80 litres

Body Details

Body type:2 seater fixed-head coupé

Engine details

Engine layout:longitudinal

Final drive ratio:3.73

engine type:naturally aspirated petrol

Engine code:AM28

Capacity:5.9 litre5935 cc(362.176 cu in)

Bore/stroke ratio:1.12

Engine construction:aluminium alloy block & head

Engine coolant:Water

Aspiration:Normal

Engine position:front

Gearbox:7 speed manual

Engine manufacturer:Aston Martin

Cylinders:V 12 in 60° vee

Bore × Stroke:89 × 79.5 mm, 3.5 × 3.13 in

Specific output:95.2 bhp/litre1.56 bhp/cu in

Specific torque:104.47 Nm/litre, 1.26 ft·lb/cu3

compression ratio:11:1

Catalytic converter:Y

Performance

Weight-to-power ratio:3.95 kg/kW, 6.6 lb/bhp

maximum power output:573 PS (565 bhp) (421 kW)at 6750 rpm

maximum torque:620 Nm (457 ft·lb) (63.2 kgm)at 5750 rpmlb/ft

Acceleration 0-60mph:3.7 ss

Maximum speed:330 km/h (205 mph)mph

Power-to-weight ratio:344.06 PS/tonne (1000 kg), 253.05 kW/tonne (1000 kg), 339.34 bhp/tonne (1000 kg), 0.15 bhp/lb

Drive wheels:rear wheel drive

Acceleration 0-100km/h:3.9 s

Our Sponsor

Fuel Consump.

Fuel system:EFI

Chassis & Geomtry

turns lock-to-lock:2.500

length:wheelbase ratio:1.69

Brakes

Brakes F/R:VeDi/VeDi-S-ABS

Rear brake diameter:360 mm

Front brake diameter:398 mm

bmep (brake mean effective pressure):1312.7 kPa (190.4 psi)

Wheels & Tyres

Wheel size front:9 x 19

Tyres front:Pirelli P Zero Corsa 255/35 ZR 19

Wheel size rear:11 x 19

Tyres rear:Pirelli P Zero Corsa 295/30 ZR 19

Other

Steering:power assisted rack & pinion

Number of doors:2

RAC rating:58.9

Valve gear:double overhead camshaft (DOHC), 4 valves per cylinder, 48 valves in total

Unitary capacity:494.58 cc
