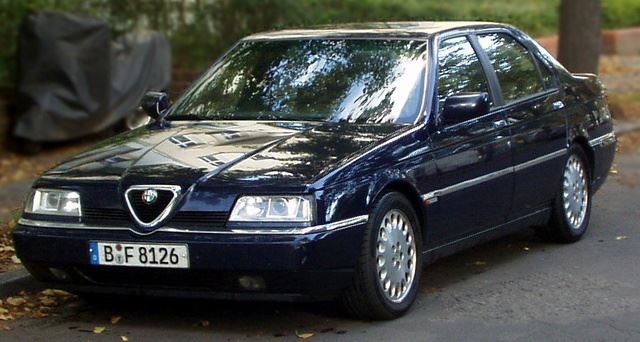

1992 Alfa Romeo 164 24v Super

Car Specs

1992 Alfa Romeo 164 24v Super

Information

Alfa Romeo

Quick Facts

Build Start: 1992

Available in other variants

read more »

Specifications

General

Build Start: 1992
Model Variant: 164

Dimensions

Track/tread (front): 1515mm
Length: 4665mm
Height: 1390mm
Kerb weight: 1434kg
Wheelbase: 2660mm
Track/tread (rear): 1488mm
Width: 1760mm
Fuel Tank Capacity: 70litres

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Bore × Stroke: 93 × 72.6mm
Specific output(DIN): 70 bhp/litre1.15 bhp/cu in
Specific torque(DIN): 91.25 Nm/litre, 1.1 ft·lb/cu3
Compression Ratio: 10:1
Engine Coolant: Water
Aspiration: Normal
Engine Position: front
Top Gear Ratio: 0.92
Engine Type: naturally aspirated petrol
Cylinders: V 6 in 60° vee
Capacity: 3 litre (2959cc)
Bore/stroke ratio: 1.28
Sump: wet sumped
Crankshaft Bearings: 4
Catalytic converter: Y
Engine Layout: transverse
Gearbox: 5 speed manual
Final Drive Ratio: 3.35
Engine Manufacturer: Alfa Romeo

Performance

Acceleration 0-100km/h: 8s
Maximum Speed: 240km/h
Weight-to-power ratio: 9.29kg/kW
Drive Wheels: front wheel drive
maximum power output(DIN): 210 PS (207 bhp) (154 kW)at 6300 rpm
maximum torque(DIN): 270 Nm (199 ft·lb) (27.5 kgm)at 5000 rpm
Standing kilometre: 28 s
Power-to-weight ratio: 146.36 PS/tonne (1000 kg)

Our Sponsor

Fuel Consump.

Fuel system: Bosch Motronic M 1.7 fuel injection
Fuel Consumption: 7.5/9.4/13.5 l/100km 90 km/h / 120 km/h / urban

Chassis & Geomtry

Length:Wheelbase Ratio: 1.75

Brakes

bmep (brake mean effective pressure): 1146.6kPa
Brakes F/R: VeDi/Di-S-ABS

Wheels & Tyres

Wheel Size Front: 15x6J
Tyres Front: 195/65 ZR 15
Wheel Size Rear: 15x6J
Tyres Rear: 195/65 ZR 15

Other

Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 24 valves in total
Designer: Pininfarina
RAC rating: 32.2
Unitary Capacity: 493.17cc
Number of doors: 4
Steering: power assisted rack & pinion
