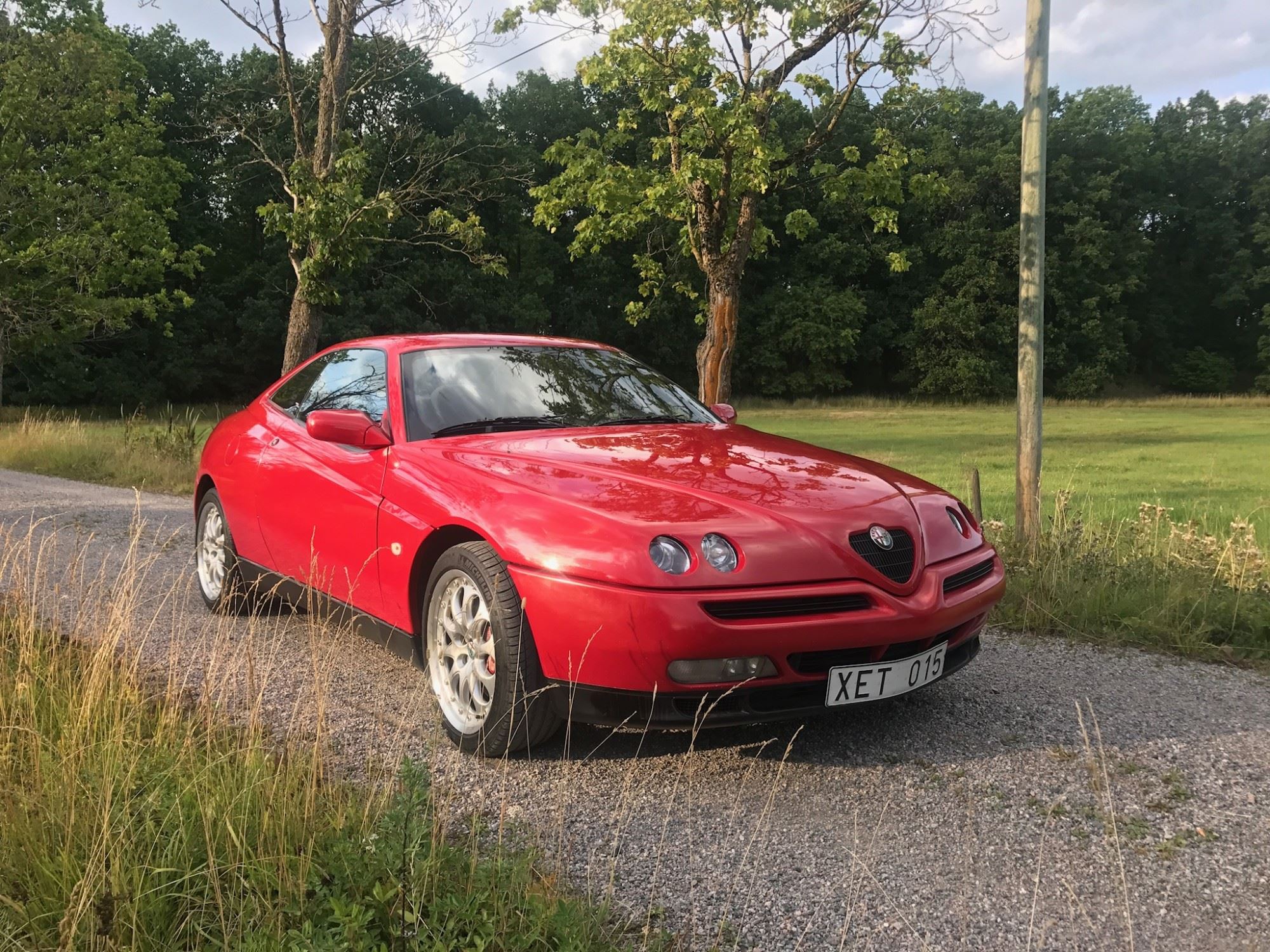

1997 Alfa Romeo GTV 3.0 24v

Car Specs

1997 Alfa Romeo GTV 3.0 24v

Information

Alfa Romeo

Quick Facts

Build Start: 1997

Available in other variants

read more »

Specifications

General

Build Start: 1997
Model Variant: GTV

Dimensions

Track/tread (front): 1508mm
Length: 4285mm
Height: 1318mm
Kerb weight: 1415kg
Wheelbase: 2540mm
Track/tread (rear): 1530mm
Width: 1780mm
Fuel Tank Capacity: 70litres

Body Details

Body Type: 2 seater fixed-head coupé

Engine Details

Compression Ratio: 10:1
Catalytic converter: Y
Engine Position: front
Engine Type: naturally aspirated petrol
Gearbox: 6 speed manual
Cylinders: V 6 in 60° vee
Final Drive Ratio: 3.56
Bore × Stroke: 93 × 72.6mm
Specific output(DIN): 73.3 bhp/litre1.2 bhp/cu in
Specific torque(DIN): 91.25 Nm/litre, 1.1 ft·lb/cu3
Sump: wet sumped
Engine Coolant: Water
Aspiration: Normal
Engine Layout: transverse
Engine Manufacturer: Alfa Romeo
Top Gear Ratio: 0.82
Capacity: 3 litre (2959cc)
Bore/stroke ratio: 1.28

Performance

Acceleration 0-100km/h: 6.7s
Standing quarter-mile: 15.1 s, @ 96 mph
Maximum Speed: 250km/h
Weight-to-power ratio: 8.74kg/kW
Drive Wheels: front wheel drive
Acceleration 0-60mph: 6.6s
Acceleration 0-160km/h (100mph): 16s
Standing kilometre: 26.8 s, @ 198 km/h
Power-to-weight ratio: 155.49 PS/tonne (1000 kg)
maximum power output(DIN): 220 PS (217 bhp) (162 kW)at 6300 rpm
maximum torque(DIN): 270 Nm (199 ft·lb) (27.5 kgm)at 5000 rpm

Our Sponsor

Fuel Consump.

Fuel system: Bosch Motronic ME2.1 fuel injection
Fuel Consumption: 16.8/8.7/11.7 l/100km urban/extra-urban/combined

Chassis & Geomtry

Turning Circle: 12.00 m
Rear suspension: I.DW.CS.ARB.
Front Suspension: I.MS.W.ARB.
Length:Wheelbase Ratio: 1.69

Brakes

bmep (brake mean effective pressure): 1146.6kPa
Front Brake Diameter: 305mm
Brakes F/R: VeDi/Di-ABS
Rear brake diameter: 240mm

Wheels & Tyres

Tyres Rear: 205/50 R 16 Y
Tyres Front: 205/50 R 16 Y

Other

Unitary Capacity: 493.17cc
Designer: Pininfarina
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 24 valves in total
Number of doors: 2
Steering: power assisted rack & pinion
RAC rating: 32.2
