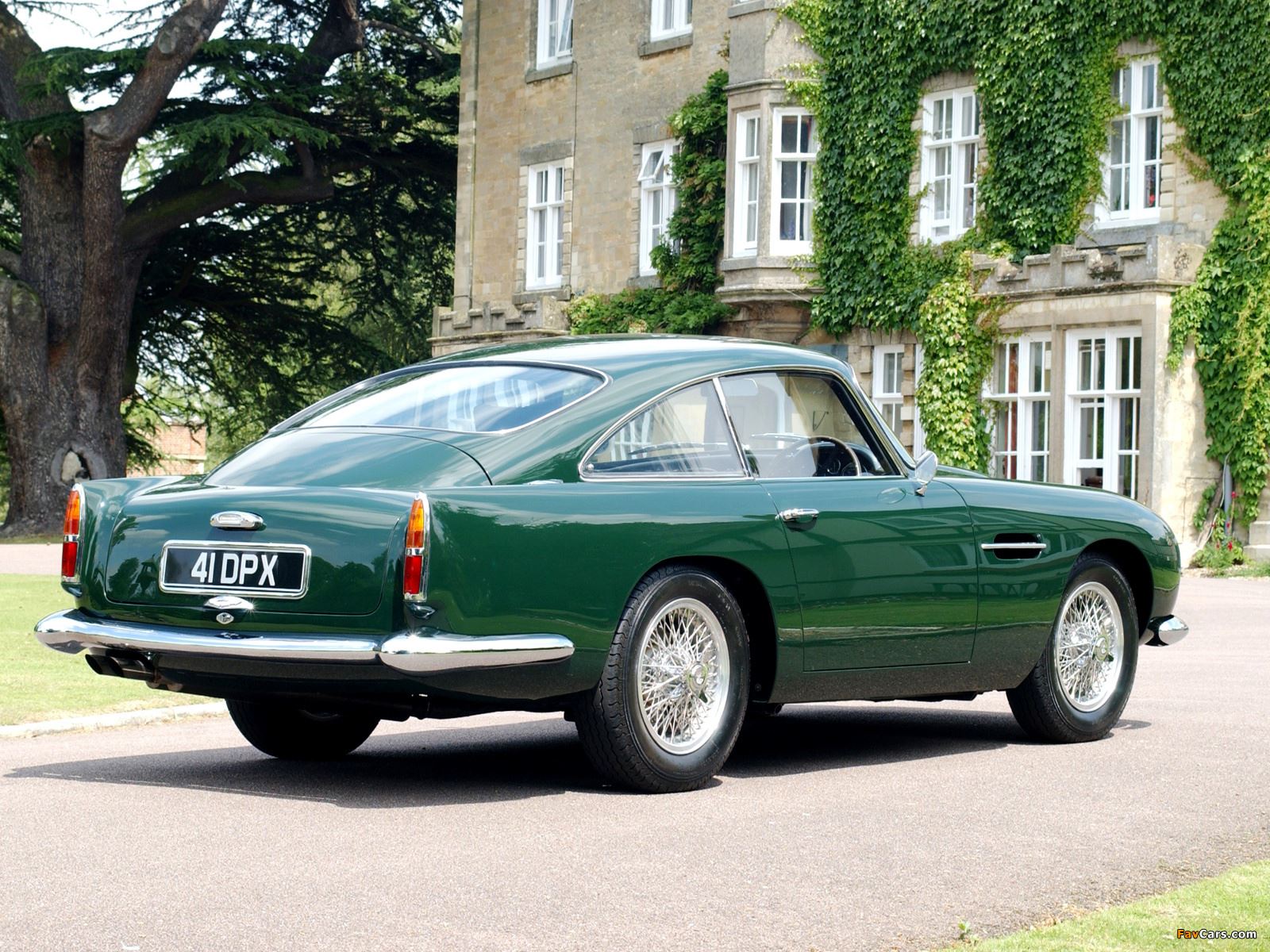

1959 Aston Martin DB4 GT

Car Specs

1959 Aston Martin DB4 GT

Information

Aston Martin

Quick Facts

Production Total: 75

Build Start: 1959

Available in other variants

read more »

Specifications

General

Build Start: 1959
Model Variant: DB4

Dimensions

Wheelbase: 2362mm
Track/tread (rear): 1372mm
Width: 1676mm
Ground clearance: 159mm
Kerb weight: 1269kg
Track/tread (front): 1372mm
Length: 4353mm
Height: 1321mm
Fuel Tank Capacity: 86.4litres

Body Details

Body Type: 2 seater fixed-head coupé

Engine Details

Engine Position: front
Top Gear Ratio: 1
Engine Type: naturally aspirated petrol
Cylinders: Straight 6
Bore × Stroke: 92 × 92mm
Specific output(Net): 82.3 bhp/litre1.35 bhp/cu in
Specific torque(Net): 99.73 Nm/litre, 1.21 ft·lb/cu3
Engine Coolant: Water
Aspiration: Normal
Engine Layout: longitudinal
Gearbox: 4 speed manual
Final Drive Ratio: 3.54
Engine Manufacturer: Aston Martin
Capacity: 3.7 litre (3670 cc)
Bore/stroke ratio: 1
Compression Ratio: 9:1
Catalytic converter: N

Our Sponsor

Performance

Standing quarter-mile: 14 s
Power-to-weight ratio: 241.29 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive
Acceleration 0-80km/h (50mph): 4.8s
Maximum Speed: 245km/h
Weight-to-power ratio: 5.63kg/kW
maximum power output(Net): 306 PS (302 bhp) (225 kW)at 6000 rpm
maximum torque(Net): 366 Nm (270 ft·lb) (37.3 kgm)at 5000 rpm
Acceleration 0-60mph: 6.4s

Fuel Consump.

Fuel system: 3 We carbs

Chassis & Geomtry

Turns Lock-to-Lock: 2.800
Front Suspension: I.CS.
Turning Circle: 9.80 m
Rear suspension: LA.CS.
Length:Wheelbase Ratio: 1.84

Brakes

Brakes F/R: Di/Di-S
bmep (brake mean effective pressure): 1253.2kPa

Other

Production Total: 75
Valve Gear: double overhead camshaft (DOHC), 2 valves per cylinder, 12 valves in total
Steering: rack & pinion
Number of doors: 2
RAC rating: 31.5
Unitary Capacity: 611.67cc
