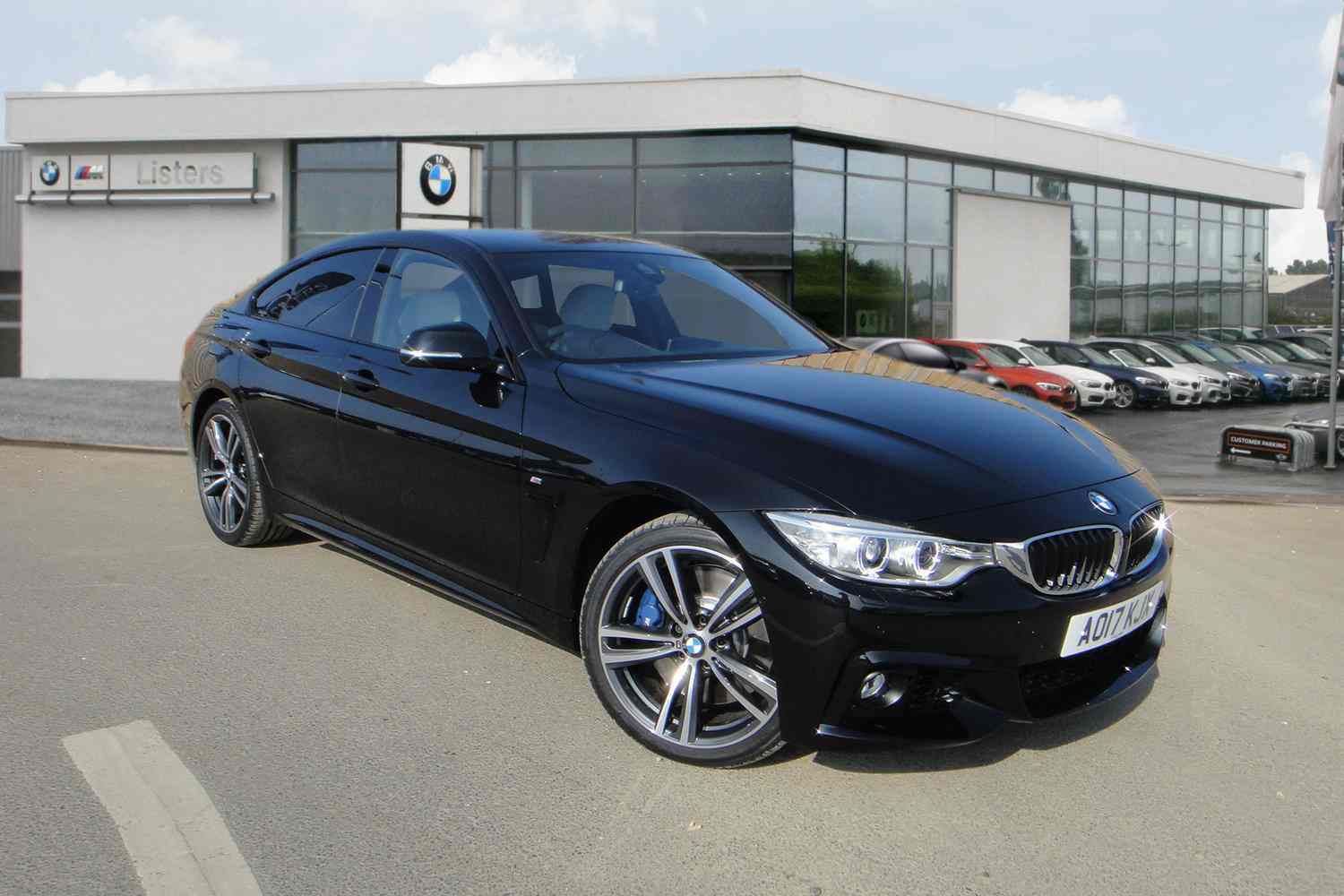

2017 BMW 420d xDrive Gran Coupé

Car Specs

2017 BMW 420d xDrive Gran Coupé

information

BMW

Quick Facts

Chassis Code: F36

Build Start: 2017

Available in other variants

read more »

Specifications

General

Carfolio.com ID: 508266
Build Start: 2017
ModelName: 4Series
ModelVariant: F36
Chassis Code: F36

Dimensions

Wheelbase: 2810mm
Track/tread (rear): 1592mm
Width: 1825mm
Ground clearance: 145mm
Kerb weight: 1670 kgkg
Track/tread (front): 1543mm
Length: 4640mm
Height: 1404mm
fuel tank capacity: 60 litreslitres

Body Details

Body type: 4/5 seater sedan/saloon

Engine details

Engine layout: longitudinal
Engine manufacturer: BMW
Top gear ratio: 0.66
Capacity: 2 litre1995 cc(121.742 cu in)
Bore/stroke ratio: 0.93
sump: wet sumped
Engine coolant: Water
Aspiration: Turbo D.
Engine position: front
engine type: turbocharged diesel
Gearbox: 6
Cylinders: Straight 4
Final drive ratio: 3.15
Bore × Stroke: 84 × 90 mm, 3.31 × 3.54 inmm
Specific output: 94 bhp/litre1.54 bhp/cu inbhp/litre
Specific torque: 200.5 Nm/litre, 2.42 ft·lb/cu3Nm/litre
compression ratio: 16.5:1
Catalytic converter: Y

Performance

maximum power output: 190 PS (187.5 bhp) (140 kW)at 4000 rpm
maximum torque: 1995lb/ft
Acceleration 0-100km/h: 7.6 ss
Power-to-weight ratio: 113.84 PS/tonne (1000 kg), 83.72 kW/tonne (1000 kg), 112.28 bhp/tonne (1000 kg), 0.05 bhp/lb
Weight-to-power ratio: 11.94 kg/kW, 19.95 lb/bhpkg/kW
Drive wheels: all wheel drive
Maximum speed: 235km/h

Our Sponsor

Fuel Consump.

Fuel consumption: 5.6/4.0/4.6 l/100km urban/extra-urban/combined
km/litre: 17.9/25.0/21.7 km/l urban/extra-urban/combined
US MPG: 42.0/58.8/51.1 US MPG urban/extra-urban/combined
Carfolio Calculated CO2 ?: 121.90 g/km
CO2 Effizienz (DE): A
Fuel system: common rail direct diesel injection
litres/100km: 5.6/4.0/4.6 l/100km urban/extra-urban/combined
UK MPG: 50.4/70.6/61.4 UK MPG urban/extra-urban/combined
Carbon dioxide emissions: 121.0 g/km
VED band (UK): D

Chassis & Geomtry

length:wheelbase ratio: 1.65

Brakes

Brakes F/R: VeDi/VeDi-S-ABS
bmep (brake mean effective pressure): 2519.6 kPa (365.4 psi)kPa

Wheels & Tyres

Wheel size front: 7½J x 17
Tyres front: 225/50 R 17 94W
Wheel size rear: 7½J x 17
Tyres rear: 225/50 R 17 94W

Aerodynamics

Drag coefficient: 0.29
CdA: 0.63
Frontal area: 2.16 m²

Other

RAC rating: 17.5
Number of doors: 4
Valve gear: double overhead camshaft (DOHC), 4 valves per cylinder, 16 valves in total
Unitary capacity: 498.75 cccc
